How the Peer Pressure softmod broke the Xbox 360 after 20 years

Developer Grimdoomer released the Peer Pressure persistent softmod for the Xbox 360 earlier this month, and security researcher Modern Vintage Gamer just published a technical breakdown of how it works.

We always appreciate Modern Vintage Gamer's videos around here. He brings a deep understanding of console security to his emulation and modding coverage, making complex exploits easy to follow. His latest analysis covers what many considered impossible: a permanent software-only hack for Microsoft's 2005 console.

The exploit alters the console's NAND image and hard drive security sectors to launch a series of direct memory access attacks during startup. This lets the system run unsigned code before the official dashboard can even load. You don't need to solder a modchip or leave a USB drive plugged in.

Relying on a slow hard drive

The softmod requires a mechanical 2.5-inch SATA hard drive capped at 2TB. Modern solid-state drives are simply too fast to work reliably. The exploit depends on a race condition during the boot sequence, and the physical latency of a spinning platter provides the exact delay needed to trigger it.

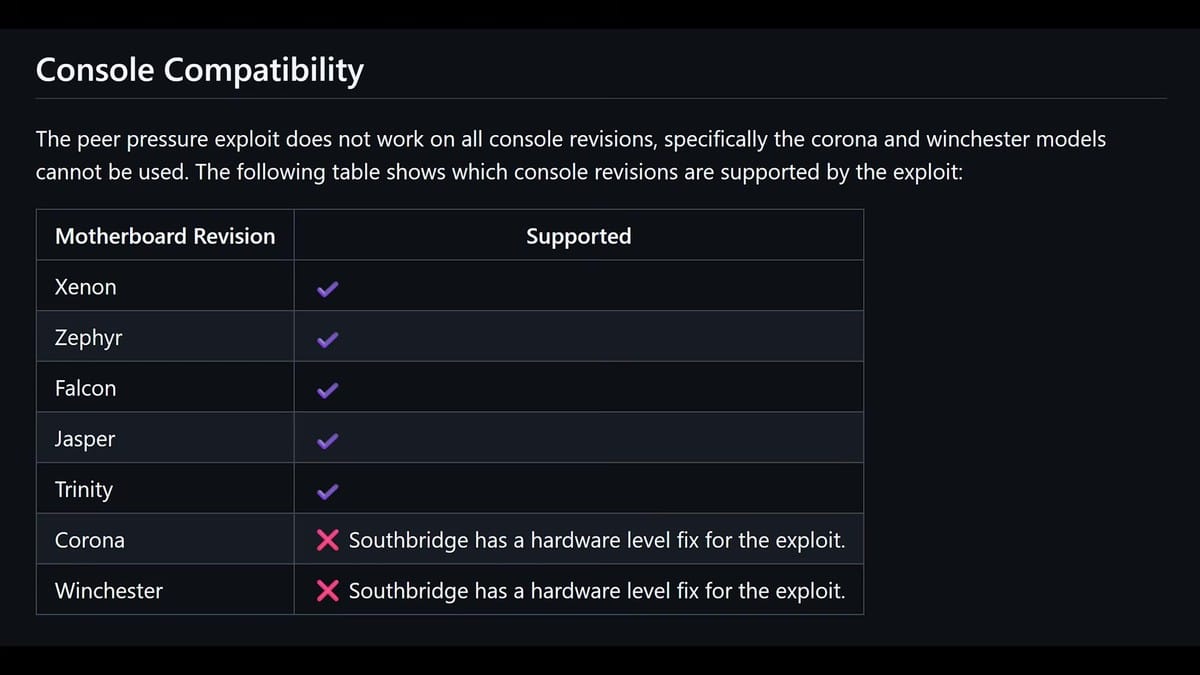

It also requires specific hardware revisions. Peer Pressure runs on Xenon, Zephyr, Falcon, Jasper, and Trinity motherboards. Microsoft patched the vulnerability at the hardware level in the Southbridge chips of the later Corona and Winchester revisions. You can usually identify an incompatible board by checking the power requirements on the back of the console. Trinity systems draw 10.83 amps, while the patched models draw 9.6 amps.

Blue boot screens and custom dashboards

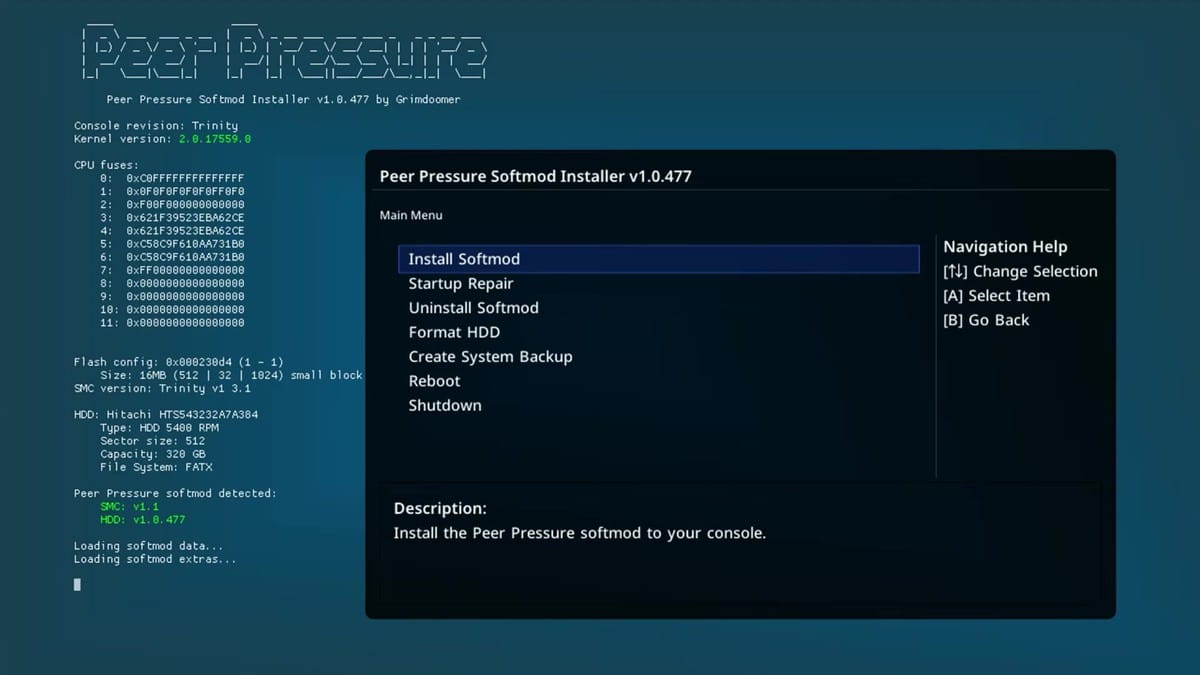

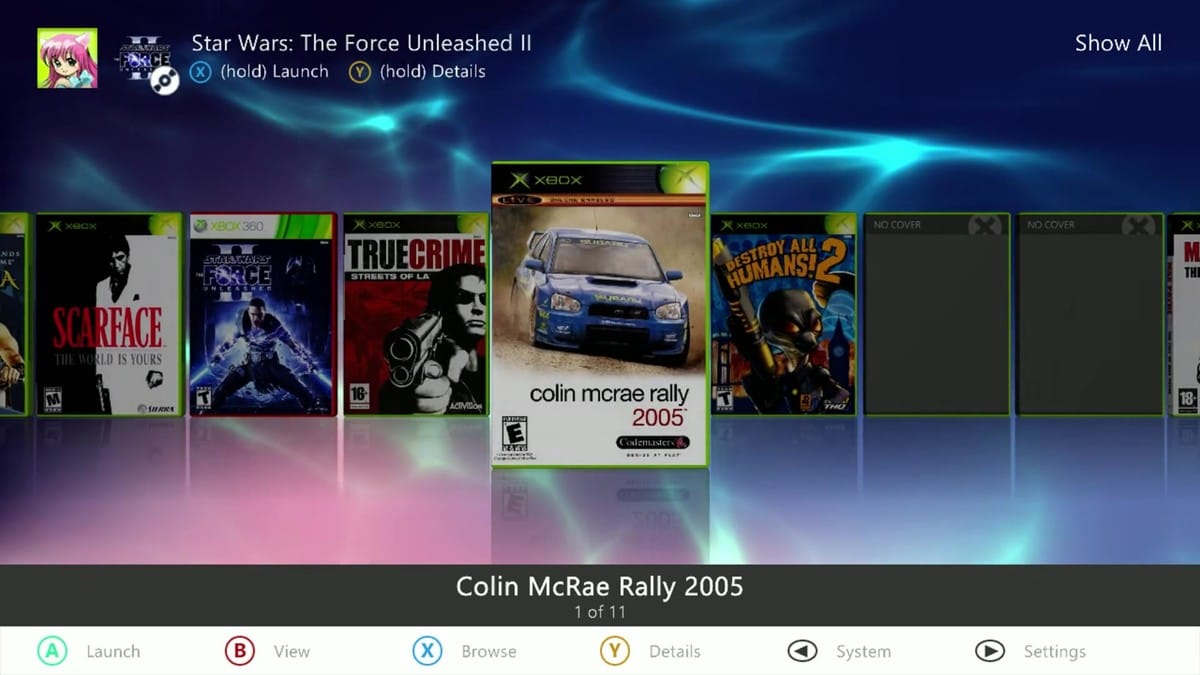

Installation requires the 17559 dashboard firmware and uses the Rock Band Blitz demo payload to execute the initial setup. Once installed, the console can boot directly into custom software like the Aurora dashboard.

Because the unsigned code executes so early in the boot process, it allows for modifications that were previously out of reach. MVG demonstrates a custom blue startup animation in his video, replacing the traditional green Xbox logo before the operating system even initializes.

The softmod includes an integrated settings menu to handle profile themes and system updates over the network, so you won't have to format a USB drive every time a patch drops. It turns a stock console into a region-free machine capable of running homebrew and backups, entirely through software. The installation files and documentation are available on the official GitHub repository.
